Cantilever hardware kit for sloping driveways gate up to 6 m

Product Description:

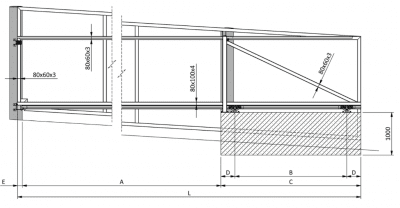

Cantilever hardware kit for sloping driveways up to 6 meters and 10% inclination.
Easy installation with screws and welding needed.
ALL IN ONE BOX CONCEPT
For more details download the Assembly instructions you will find under Documents.

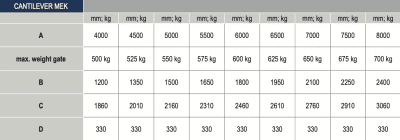

The total weight of the gate (including the rail) must not exceed 600 kg. The weight of the rail is 93 kg.

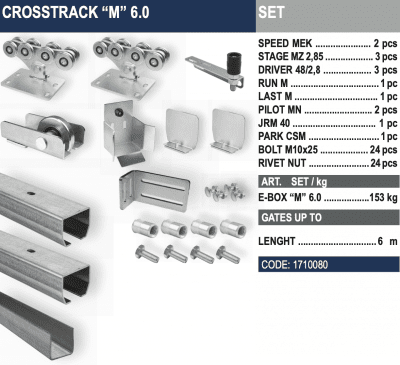

Package contents:
2 pcs. carriage SPEED MEK.
3 pcs. "C” Profile guide galvanized STAGE MZ 2.85lm
1 pc. Guide support wheel RUN M
3 pc "U" Profile guide DRIVER 48 2.8lm
1 pc. End stop LAST M
1 pc. End stop bracket PARK CSM
2 pcs. End cap PILOT MN
1 pc. Roller guide plate JRM 40
24 pcs. Bolt M10x25mm
24 pcs. River nut

NOTE: THE GATES FRAME IS NOT INCLUDED.
